  Home >> ELECTRONICS >> CCTV camera >> 8CCTV Camera + DVR BOX + 10inch LCD SCREEN

8CCTV Camera + DVR BOX + 10inch LCD SCREEN [Comments(0)|Leave your Comment]
Item#:1768008567
Score:0  (Score change Discount Voucher)
Weight:0 kg.
List Price:$1020.00
Price:$180.00
You Save:$840.00
Qty:

Prev:PTZ CCTV Camera 2.0mp

Next:360 Degree Panaromic view CCTV Camera

detail

Related

Comment

Payment

Shipping

High Cost-Effective Combination.

7 INCH DIGITAL LCD 8 CHANNEL H.264   NETWORK  RECORDER SECURITY SYSTEM


If no special requirement about color, lens for cameras, we will send stochastic camera(3.6mm or 6mm, black or white color)


Introduction:

The CCTV Systems includes a 8CH H.264 Real-time Recording Network DVR and 4pcs outdoor Weatherproof IR Day&Night surveillance Cameras providing everything you need to have your surveillance system up and running in your home or business quickly and easily.


DVR Features:
*8CH 7? LCD DVR Combo
*video compression format is the H.264 (Main Profile);

*8ch real-time recording and playback

*Support Symbian / Windows Mobile/Iphone/Blackberry/Android remote view
*Support Muilt languages Portuguese, English, Thai, Russian, French, Spanish, etc.



Camera Features:
* 1/3inch color CMOS Chip
* 600 TV Lines Horizontal Resolution
* 3.6mm Lens (Wide Angle)
* 24PCS IR Leds
* IP66 IP Rate

Camera Specifications

Video Resolution

600TVL

Lens

Board Lens 3.6mm/F2.0

Mini Illumination

0 Lux(IR ON)

Image Sensor

1/3  CMOS

White Balance

Auto

Electronic Shutter

Auto: PAL 1/50-1/100,000Sec;NTSC 1/60-1/100,000Sec

S/N Ratio

?48dB (AGC OFF)

IR Distance

20M

Infrared LEDs

24 Units (Ø5mm)

IR Status

Under 10 Lux By CDS

IR Power On

CDS Auto Control

Sync System

Internal Synchronization

Gamma Correction

0.45

Video Out

1.0Vp-p, 75?

DSP

CMOS

Operation Temperature

-10 ~ +50 RH95% Max

Storage Temperature

-20 ~ +60 RH95% Max

Current

300mA

Power Source

DC12V (+/-10%)

Water Resistance

IP66





DVR Specifications


Model

8 CHANNEL

Operation System

Embedded Linux Operation System

Operation Interface

GUI, support mouse, pane, remote control operation

Video Standard

PAL, NTSC

System Resources

Multi-tasking operation, simultaneous multi-channel recording, simultaneous video playback and simultaneous network operation.

Video Compression

H.264

Audio Compression

G.711A

Recording Mode

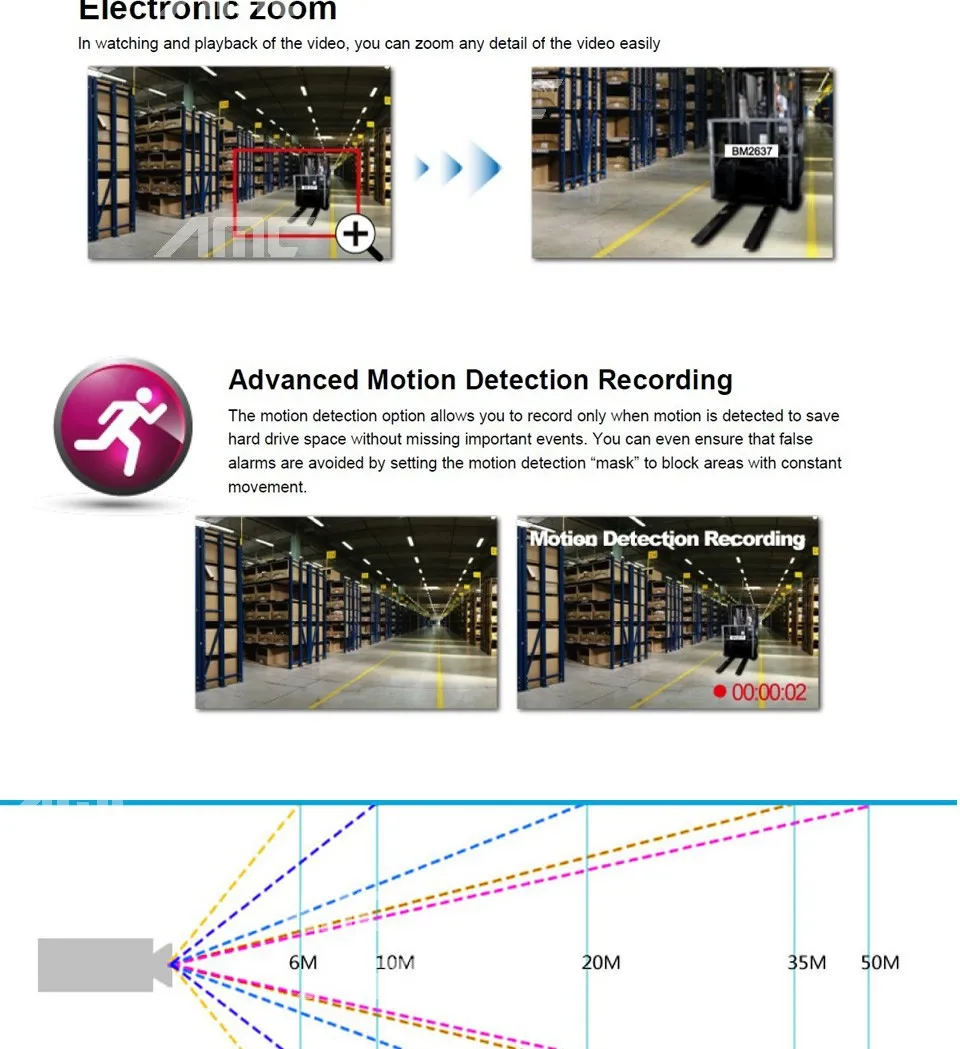

Manual, Timing, Alarm, Motion detection

Search Mode

By time, event, channel, log

Backup Mode

Network download, USB backup

Video Input

8ch BNC

Video Output

LCD:7 inch (Resolution:1024X768

Audio Input

1ch RCA

Audio Output

1ch RCA

Voice Talkback

Live Video Resolution

1ch RCA

PAL:720x576(D1 );NTSC:720x480(D1)

Playback Resolution

Image Control

Remove Detection

Relate on record resolution

selectable

Each channel can set independent detection zones and multilevel sensitivity

Video Display

1/4 multiple display

Record resolution

D1(704 * 576/704 * 480), HD1(704 * 288/704 * 240), CIF(352 * 288/352 * 240)

Recording Frame Rate

PAL:25f/s(Adjustable) NTSC:30f/s(Adjustable)

Recording Storage

Local  HDD, Network

Local Playback

Select any 4 channel playback at same time

Alarm Input

riggering event: Record, Snapshot, Alarm, Email

Motion detection:Area: 396(22 * 18), Sensitivity: 1-6 level

PTZ Control

                                                                     RS485

HD Interface

1 SATA Ports

Network Interface

RJ45 10M/100M Adaptable Ethernet Connection

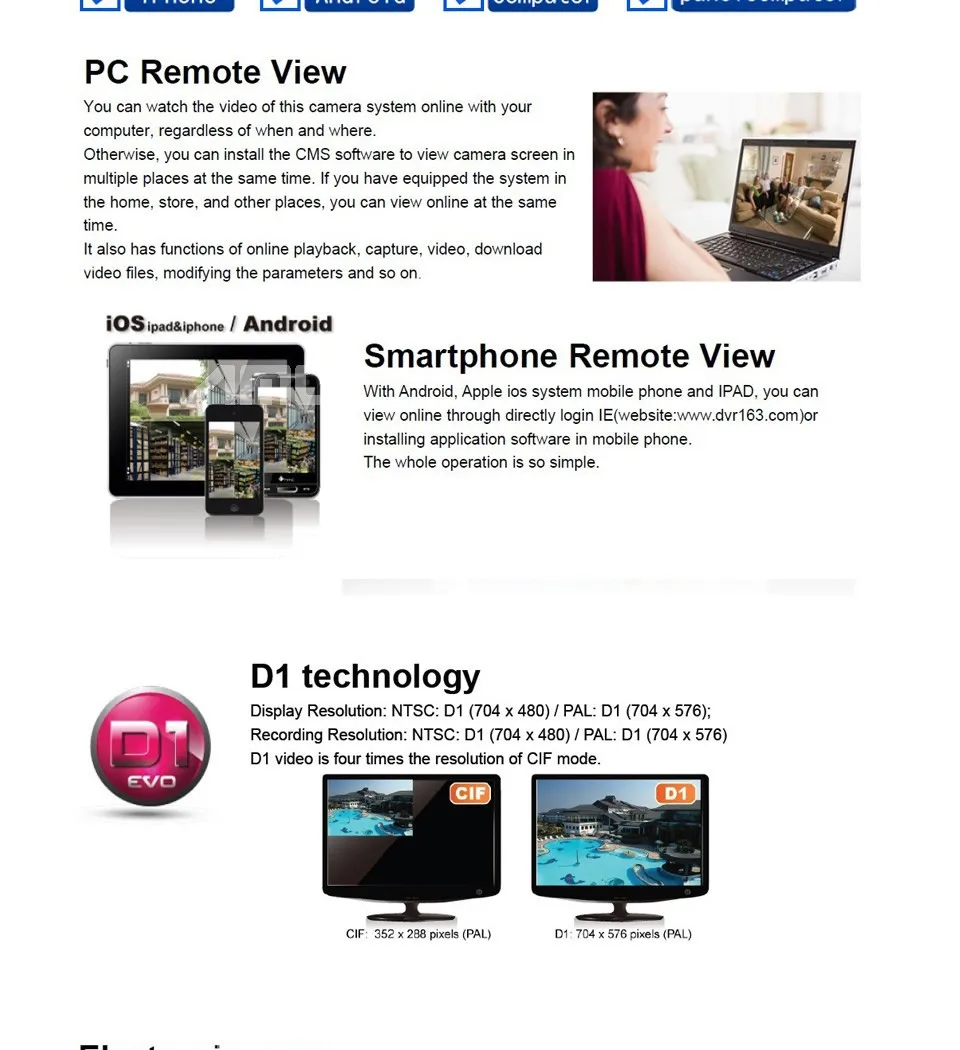

Mobile Phone View

Support  iPhone, blackberry, Windows Mobile, Android, Symbian

USB Interface

2 USB2.0 High-speed Port

Power Supply

12V 4A
